Underwater floodlights

made of cast brass

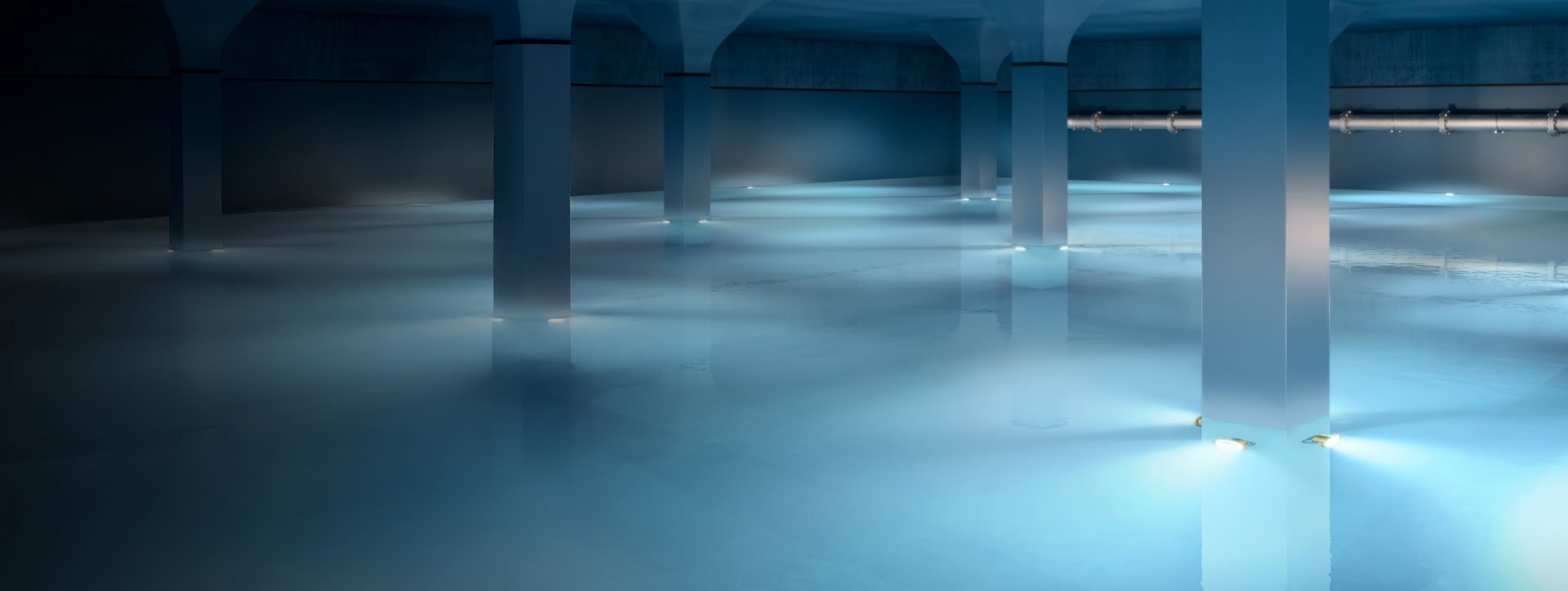

Exceptional material properties, remarkable visual quality and – last but by no means least – superior light output are the cornerstones of our underwater floodlights. They are the optimal solution for the illumination of ponds, water pools and water features in private and public areas. The cast brass used in these luminaires is the optimal material for long-term underwater use. The alloy is a lead-free alternative to conventional brass materials and is highly resistant to weathering. The material is resistant to seawater and has drinking water approval – as documented by the HW1011DQ0117 certificate.

A 24V DC version is available for use in swimming pools and walk-in pools in accordance with DIN VDE 0100-702. Suitable 24 V DC power supply units are optional accessories and must be ordered separately.

Technical data

Protection class IP 68  20 m Supply voltage 230 V AC · Safety class I BEGA Thermal Management®

Lead-free cast brass approved for drinking water Stainless steel · Safety glass Reflector surface made of pure aluminium Water-resistant cable · 7m

BEGA Ultimate Driver® · DALI-controllable

84 860 · 84 861  BEGA Hybrid Optics® 84 862 · 84 863  BEGA Constant Optics®

The RGBW luminaires can be controlled by DALI colour light control (DT8, RGBWAF, xy, TC). Mounting bracket for horizontal and vertical floodlight adjustment

20-year availability guarantee for replacement parts and LED modules

LED colour temperature 3000 K

Protection class IP 68 20 m Supply voltage 24 V DC · Safety class III BEGA Thermal Management® Lead-free cast brass approved for drinking water Stainless steel · Safety glass Reflector surface made of pure aluminium Water-resistant cable · 7m

A separate 24 V DC power supply unit is required to operate the luminaires.

BEGA Ultimate Driver® BEGA Constant Optics®

The RGBW luminaires can be controlled by DALI colour light control (DT8, RGBWAF).

Where the luminaires will be controlled as part of a DALI system, a BEGA Safety Transceiver 71302, or the Safety PSU including the BEGA Safety Transceiver 71301 will also have to be added. Mounting bracket for horizontal and vertical floodlight adjustment

20-year availability guarantee for replacement parts and LED modules

LED colour temperature 3000 K

Mounting plate for underwater spotlights for underwater spotlights for screwless basic fixing for spotlight bracket fastening using 2 M8 screws, spacing 120mm Mounting plate Ø 250mm for positioning an underwater spotlight if it is not screwed to the surface on site.

Electropolished stainless steel · Material number 1.4401

Unrestricted suitability fordrinking water applications

These BEGA underwater floodlights are additionally suitable without restriction for all drinking water applications – as proven by the HW1011DQ0117 certificate.

The internationally active DVGW Cert certification body assigned its DVGW conformity seal after 20 months of continuous testing. The certification applies to all parts that come into contact with water – including cast brass, stainless steel and plastic components, as well as gaskets.

BEGA was the first company to undergo and successfully complete this certification process for underwater luminaires.

The EU Directive 2020/2184 (Drinking Water Directive) formulated new legal obligations for operators of water supply systems and property developers. They refer to products that are intended to come into contact with drinking water and may be used for the installation or maintenance of such systems. The directive, which has been significantly tightened up once again regarding the hygienic suitability of materials, will apply in future in parallel to the existing German legal standard. These BEGA products have successfully passed the certification process in accordance with applicable guidelines.

Learn mire about the DVGW Hygiene conformity seal
