Recessed ceiling luminaires

for external on/off or DALI power supply units · Direct and indirect light

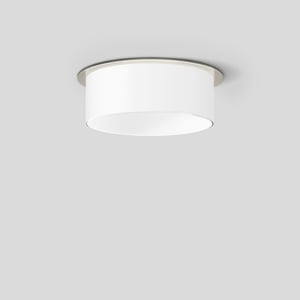

Downlights for direct and indirect light in various outputs and dimensions for installation in suspended ceilings.

A cylinder of satin matt opal glass gives the luminaire its shape. The efficient light in the centre of the integral reflector provides direct, downward-directed light. At the same time, part of the stray light is used to illuminate the luminaire glass and to produce a degree of vertical illuminance. This dual light distribution lends this series of luminaires a very pleasant, high degree of visual comfort. The luminaires and the external power supply units required for your lighting systems can be connected by means of a simple plug connector.

Technical data

Luminaire housing made of cast aluminium
Ceiling recessed housing made of synthetic material
Satin matt opal glass
Reflector made of pure anodised aluminium
Silicone diffusing lens · BEGA Constant Optics®

Cable between the luminaire and the power supply unit with plug connector

External power supply units for the operation of these luminaires must be ordered separately as accessories.

Colour rendering index (CRI) > 90

The required installation depths can be found in the instructions for use for these luminaires.

20-year availability guarantee for LED module

The luminaire luminous flux and the luminaire connected wattage quoted in the table may change as a result of technical progress. On our website you will find data sheets with information on each luminaire concerning not only the current values but also the LED service life and the luminous flux in relation to the respective colour temperature.
